Mixing desks are an essential piece of audio equipment used in both studio and live sound settings to process, balance, and mix sound signals from sources such as vocals and instruments. Available in different types and sizes, from compact, portable models to large, multi-channel consoles, they play a central role in live performances, professional recording studios, broadcasting, and multimedia production.
Which mixing desk do you need?
Choosing the right mixing desk depends on several factors, including whether the mixer will be used primarily for recording or live sound. Studio mixers generally offer more functions and controls suited to production, while live mixers are built to be portable and robust. Think about how many mics, instruments, and media devices you need to connect. The more input channels you have, the more instruments and vocals you can work with. However, more channels may make the mixer larger, heavier, and more complicated. Another important factor to consider is the number of output options for connecting with speaker systems, monitors, or audio interfaces.
You will also need to choose between analogue and digital mixers. Analogue desks are often more straightforward to use and produce a warm, natural sound that many audio engineers prefer. Digital desks, on the other hand, provide greater flexibility with features like built-in effects, automation, and integration with Digital Audio Workstations (DAWs).

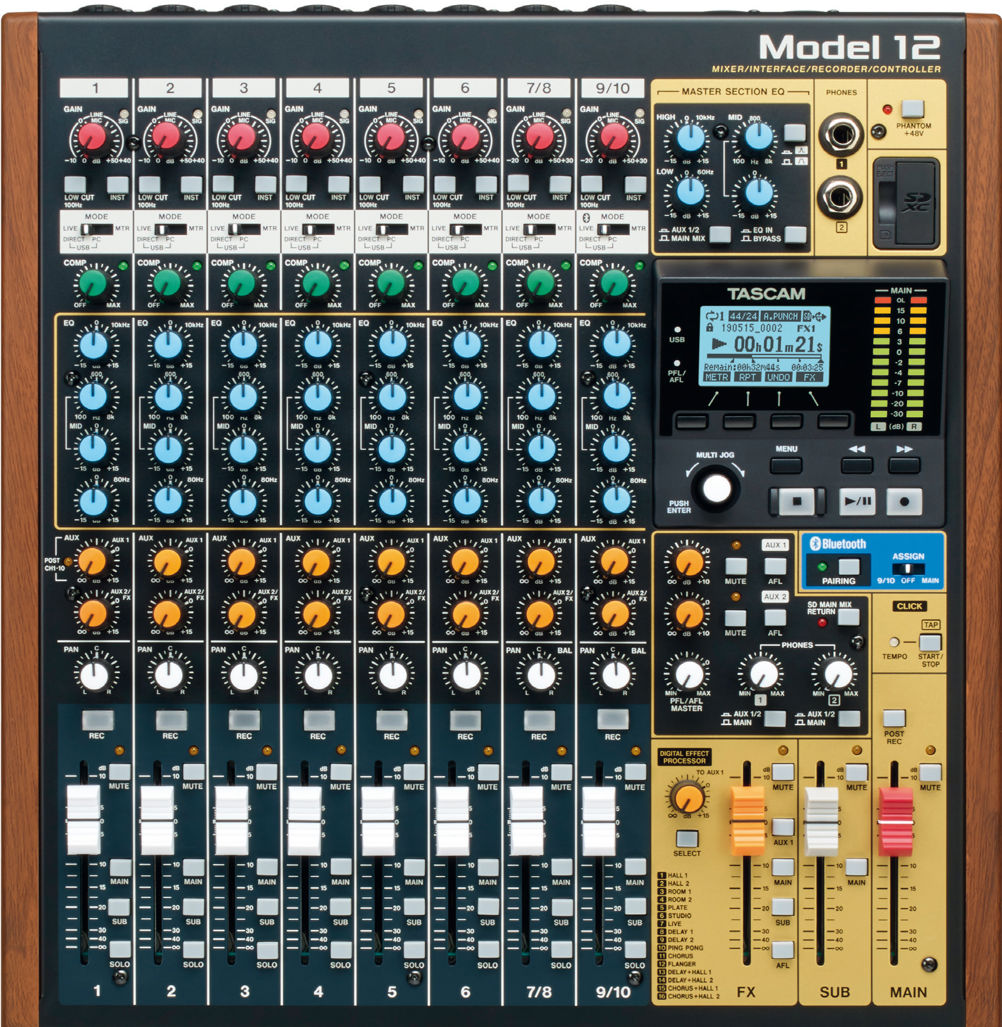

Tascam Model 12 – a versatile option
Given the range of uses in an educational environment, there's a lot to think about, but the Tascam Model 12 could be the ideal solution. This versatile mixing desk is a portable mixer for live sound, a standalone multi-track digital recorder, and a USB audio interface for recording to your computer. It also includes basic functions for controlling your DAW.
The Model 12 is a digital desk but has the look and feel of an analogue desk, with tactile controls and faders. It features high-quality analogue inputs and pre-amps to maintain warmth and character at the initial stages, then converts the signal to digital for further processing.
Combine up to 12 audio sources
There are ten analogue inputs; eight of these are combi XLR/line inputs with switchable +48V phantom power for your microphone and instruments. Two of the inputs can handle either mono or stereo signals. There is also a mini-jack input and Bluetooth 5.0 connectivity for a smartphone. This means you can combine up to 12 audio sources – enough to mic up a small band with drums, bass, guitar, and vocals and include backing tracks via the Bluetooth or 3.5mm jack.
Each input channel has simple controls for enhancing sound, including EQ adjustments for bass, mid, and high frequencies and a compressor to smooth out the audio. There are also 16 digital effects available that you can edit and store as pre-sets. On channels 1 and 2, you can insert extra effects or processors.
Computer-free capturing
As a standalone multi-track recorder, you can record 12 tracks of studio-quality audio directly onto an SD card. This makes it perfect for capturing rehearsals or live performances without needing a computer. There are also overdubbing facilities should you wish to drop a new harmony over your existing vocals. A USB-C connection makes it easy to link to your computer for playback and recording. You can record all ten inputs plus the stereo mix into your DAW to work with them or play them back and mix directly on the Model 12.
When connected to your computer, it can also function as a DAW controller, allowing hands-on control of your recordings with the mixer instead of a mouse. Podcasters will appreciate features like the mix-minus function to prevent echo during calls. It also has a function specifically for syncing audio to video, which is useful for multimedia projects.
Flexible routing options
There are plenty of flexible routing options, including AUX buses to send signals to the master EQ or outboard equipment, a subgroup, and stage monitoring outputs, suitable for small performance setups, live streaming, and studio projects. There are also two headphone outputs with individual controls.
The Tascam Model 12 combines the tactile feel of analogue mixing with the versatility of digital technology. It's a great portable mixer and multi-track recorder for live performances, with straightforward controls and a compact design that weighs just 9.4lb. It has an appealing retro look and will add a touch of style to your setup. Overall, it provides an all-in-one solution that offers great value for money.
TASCAM MODEL 12
Price: £515.00
tascam.eu/en/model12
